Create a gear ratio
Build a simple gear train using toy gears or cardboard gears, count teeth, calculate the gear ratio, and observe changes in speed and force.
About this activity
Build a simple gear train using toy gears or cardboard gears, count teeth, calculate the gear ratio, and observe changes in speed and force.
What you need
Step by step
- 1
Step 1
Gather all the materials and bring them to a clear work surface.
- 2
Step 2
Pick two gears to test and decide which one will be the driver (the gear you will turn).
- 3
Step 3
If you are making cardboard gears, draw two circles of different sizes on cardboard and cut them out now.
- 4
Step 4
If you made cardboard gears, add evenly spaced little teeth around each circle by drawing and cutting notches so they can mesh.
- 5
Step 5
Position the two gears next to each other so their teeth mesh and make sure they can spin without bumping.
- 6
Step 6
Count the teeth on the driver gear and write that number on your paper.
- 7
Step 7
Count the teeth on the driven gear and write that number on your paper.
- 8
Step 8
Calculate the gear ratio by writing it as driven teeth : driver teeth and also calculate driven ÷ driver to see how many driver turns equal one driven turn.
- 9
Step 9
Mount each gear on an axle (pushpin or skewer) so they can spin freely and stay meshed.
- 10
Step 10
Turn the driver gear 10 full times and count how many full turns the driven gear makes; write down the number you observed.
- 11
Step 11
Compare the observed driven turns to the number you expected from your calculation and note whether speed increased or decreased and whether force seemed stronger or weaker.
- 12
Step 12
Tape a small coin to the driven gear arm and slowly turn the driver to see if the gear train can lift or move the weight; write what happens.
- 13
Step 13
Try a different pair of gears and repeat the counts and test to see how changing teeth changes speed and force.
- 14
Step 14
Take a photo or write a short description of your gear train, your calculations, and what you learned, and share your finished creation on DIY.org
Fun facts
How do I build a simple gear train to calculate gear ratios and observe speed/force changes?
Start by arranging two or more gears so their teeth mesh: a driver (input) and a driven (output). Count teeth on each gear and write them down. Calculate gear ratio as driven teeth divided by driver teeth (or driver:driven for convention). Spin the driver and observe output speed and direction; measure rotations per minute or time for fixed turns. Note force changes: larger driven gear reduces speed but increases torque. Try swapping gear sizes to compare results.
What materials do I need to build toy or cardboard gears for this activity?
You'll need toy plastic gears or cardboard cut gears, pencils or wooden skewers as axles, a ruler, marker, scissors or box cutter (adult use), glue or tape, and a hole punch for axles. Optional: stopwatch to measure speed, weighing scale or spring scale for force experiments, graph paper for recording results, and different-sized gears or 3D-printed gears for more variations.
What ages are suitable for a gear ratio activity where kids count teeth and calculate ratios?
Suitable for ages about 6 and up with adult help for cutting and measurements. Ages 6–8 enjoy hands-on building and simple counting of teeth. Ages 8–12 can calculate ratios, time rotations, and record data independently. Teens can extend the activity with multi-stage gear trains, math proofs, or building small machines. Adjust complexity and supervision according to fine-motor skills and math comfort.
What are the benefits, safety tips, and variations for a gear ratio activity?
Benefits include hands-on STEM learning: counting teeth reinforces division and ratios, while testing speed and force shows real-world mechanical principles and problem-solving. Safety: supervise cutting, small parts, and sharp axles; use child-safe scissors and secure axles with tape. Variations: try compound gear trains, add a motor or rubber band drive, compare gear ratios numerically, or build cardboard gears of different tooth counts to see torque vs. speed trade-offs.

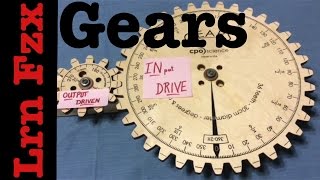

Watch & Learn
Need help?
What can we use if we don't have cardboard or the small coin listed in the materials?
If you don't have cardboard, cut gears from foam board, plastic bottle caps, or sturdy cereal boxes and substitute the coin with a small washer, LEGO brick, or a bit of modeling clay taped to the driven gear arm.
My gears are bumping or won't spin smoothly—what should I check or fix?
Re-cut or file the notches so teeth are evenly spaced, slightly increase the center-to-center spacing of the pushpin/skewer axles so the teeth mesh without binding, and make sure each gear can spin freely on its axle as described in the positioning and mounting steps.
How can I adapt this gear ratio activity for younger kids or older kids?
For younger children, use pre-cut bottle-cap or plastic gears, mark and count only 3–5 teeth and turn the driver fewer times, while older kids should draw precise cardboard gears, calculate driven ÷ driver, perform 10 or 20 driver turns, and try adding a third gear to explore compound ratios.
How can we extend or personalize the experiment after completing the basic tests?
Make the project more challenging by building a three-gear or compound gear train before mounting on axles, tape different-sized weights instead of a single coin to test lifting ability, decorate the gears, and photograph or write up your observed vs expected turns to share as instructed.
